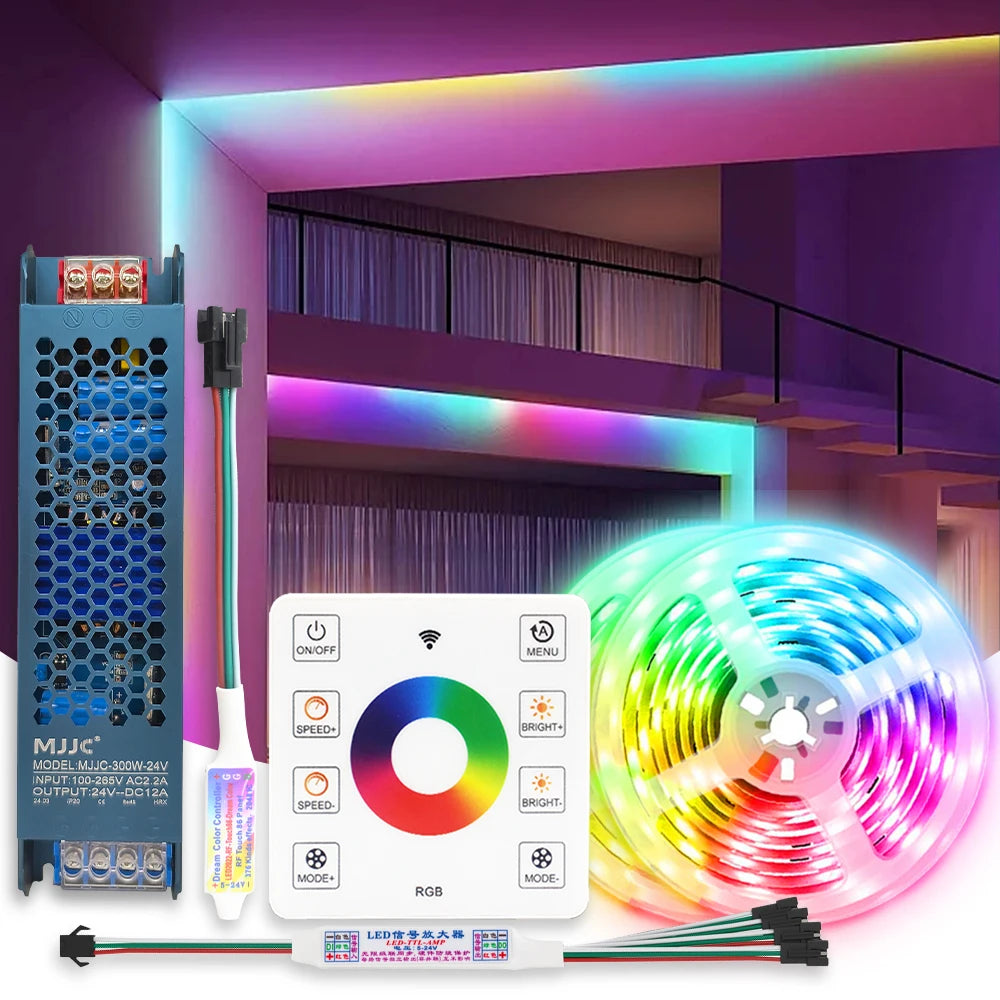

Transform your space with this premium RGBIC COB LED strip, engineered for dynamic lighting effects and reliable performance. Featuring 480 high-quality SMD3014 diodes per meter, this 24V strip delivers vibrant RGB color transitions with IC chasing effects that create mesmerizing light displays. Available in 5M, 10M, 15M, or 20M lengths to suit any room size, it's perfect for bedrooms, living spaces, and creative installations. With an impressive 50,000-hour lifespan and efficient 11.52W/m power consumption, you get long-lasting brilliance without excessive energy use. The strip is backed by multiple certifications including CE, EMC, FCC, LVD, RoHS, and UL, ensuring safety and quality. Easy to install and control, this versatile lighting solution brings professional-grade ambiance to your home décor.

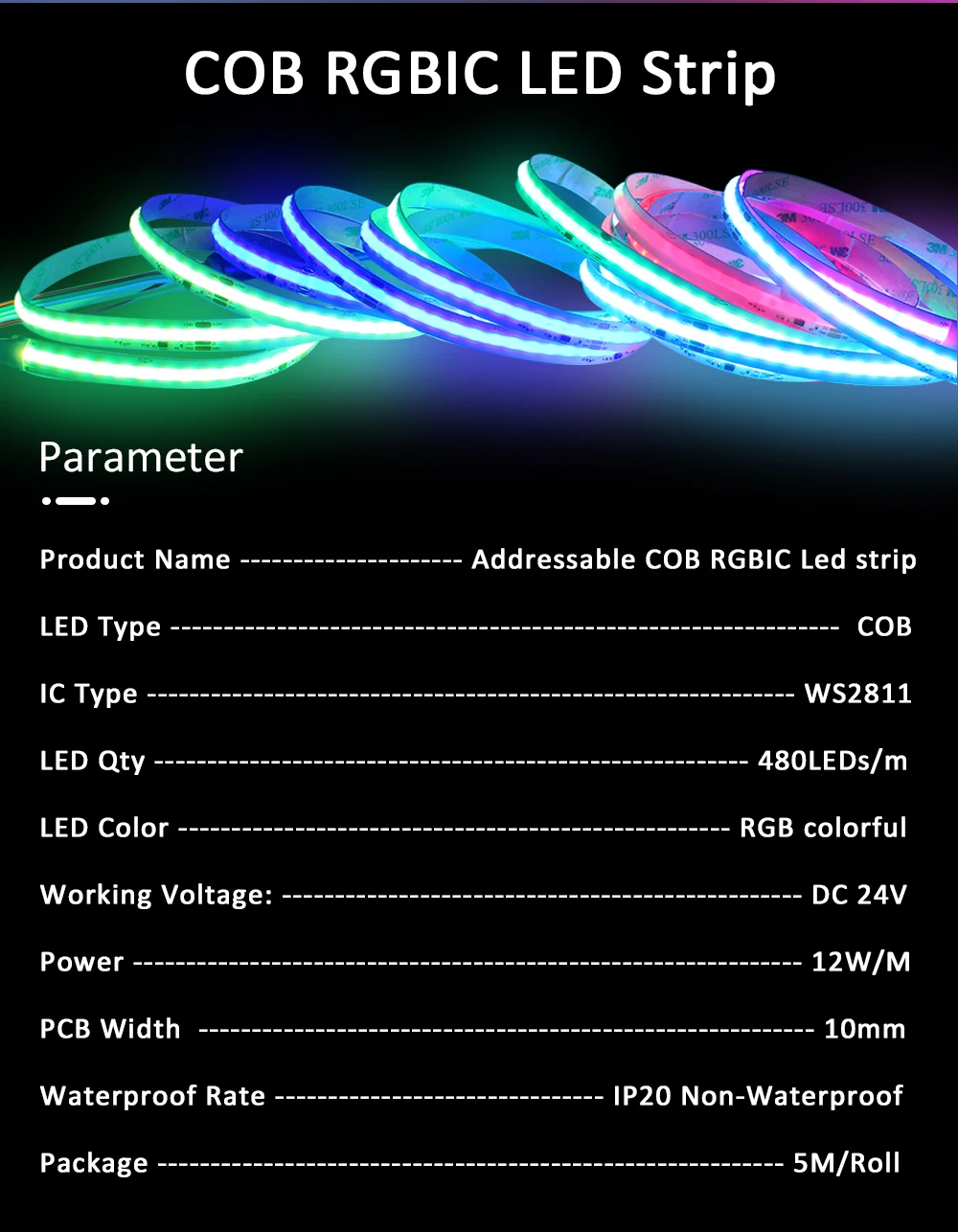

*** RGBIC Digital LED Strip Light

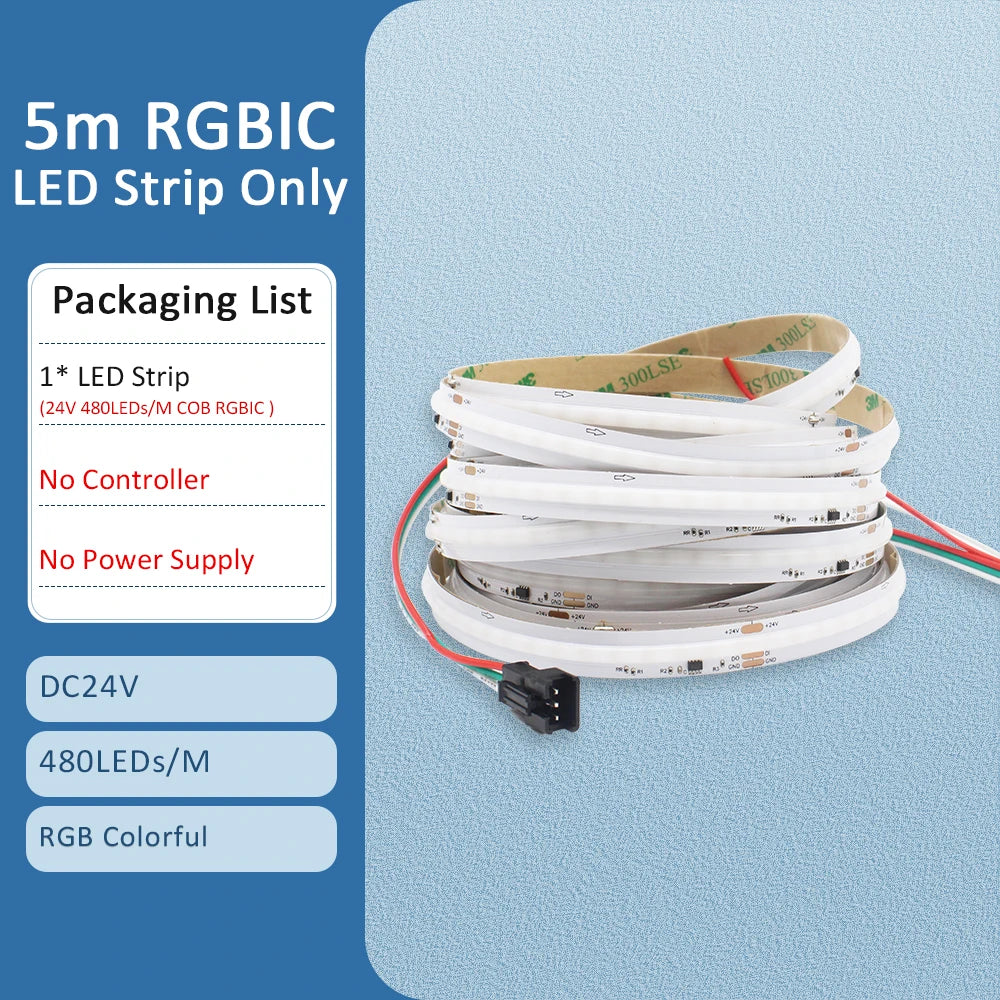

Product Name: Addressable COB RGBIC Led strip
LED Type: COB
IC Type: WS2811
LED Qty: 480LEDs/m
LED Color: RGB colorful

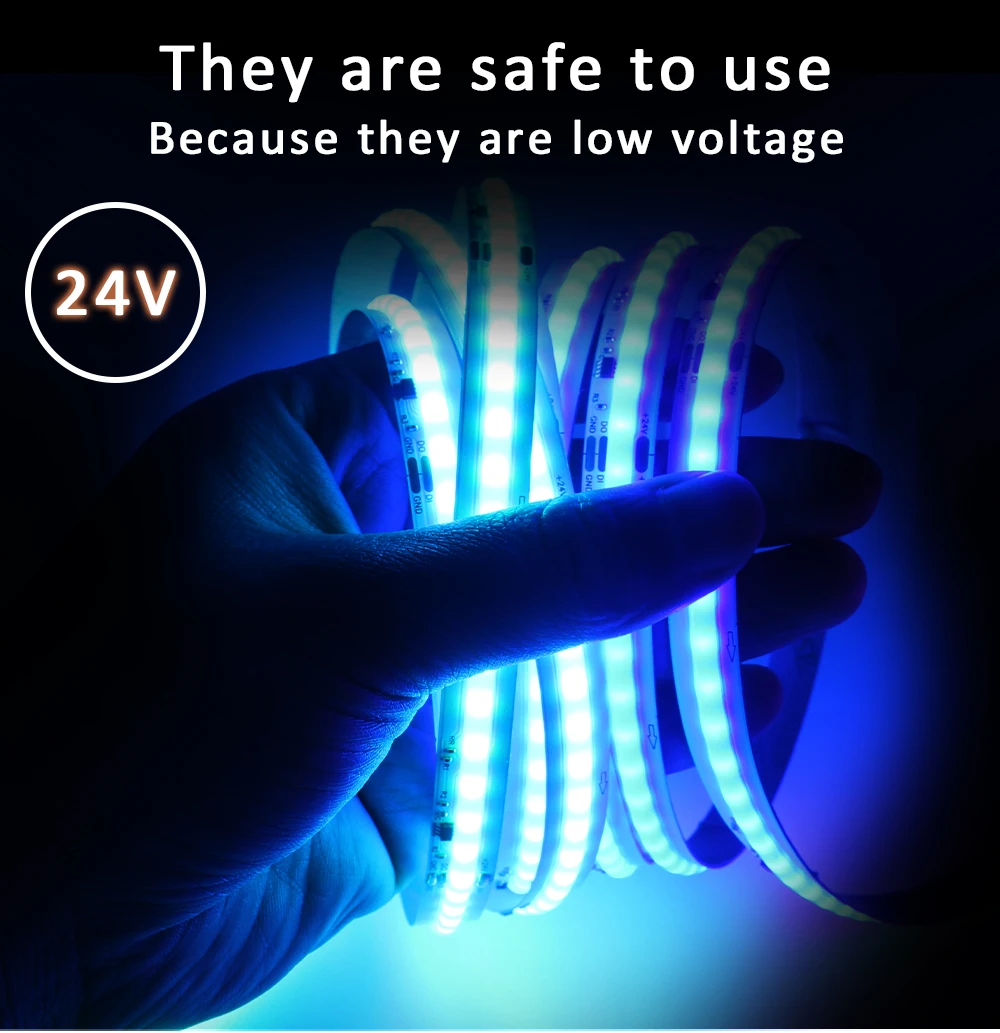

Working Voltage: DC 24V
Power: 12W/M
PCB Width: 10mm
Waterproof Rate: IP20 Non-Waterproof
Package: 5M/Roll

RGB Wire-Order: + RBG

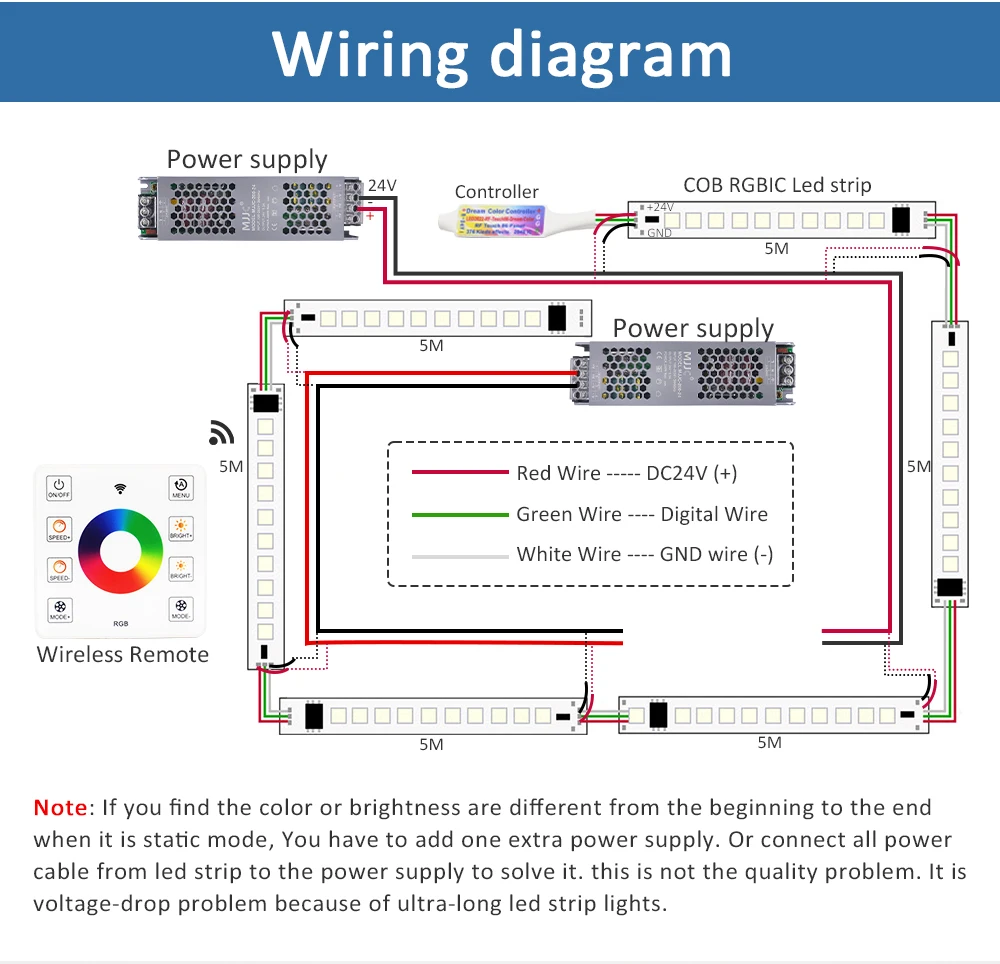

Connection:
Red Wire ---- DC 24V (+)
Green Wire --- Digital Wire
White Wire --- GND wire (-)

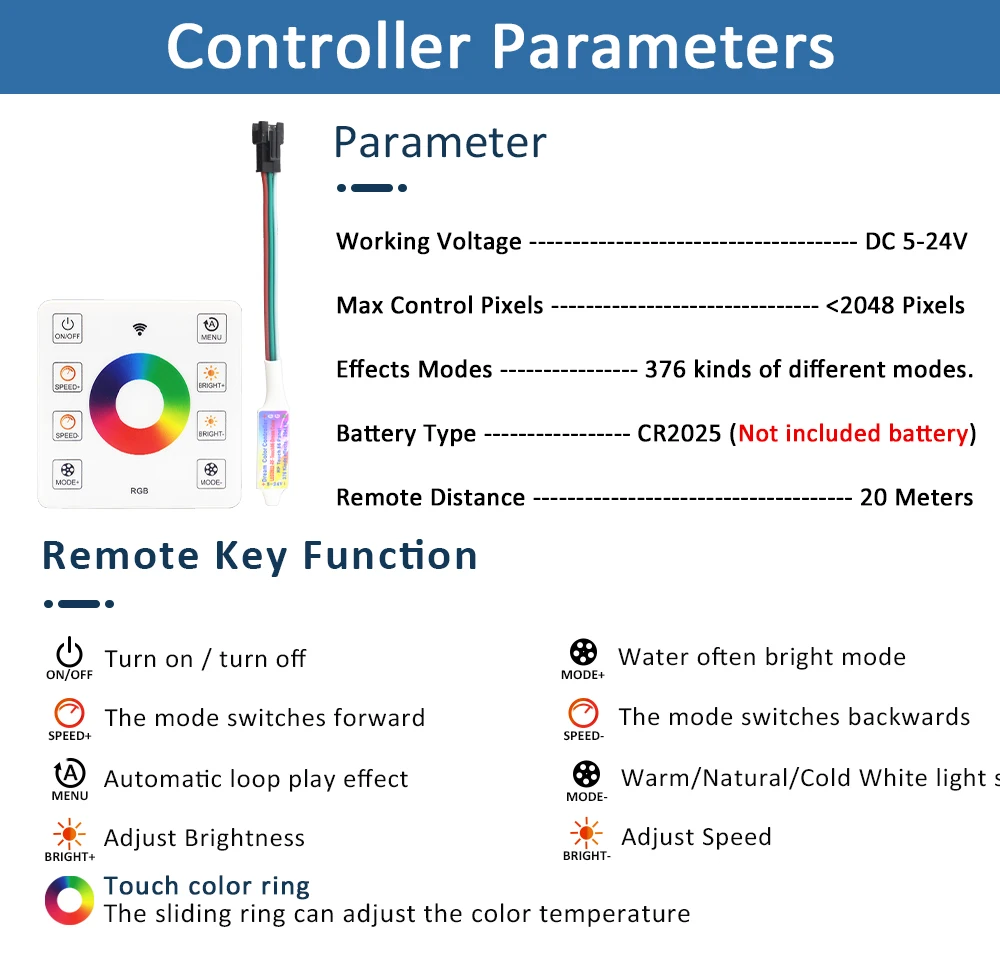

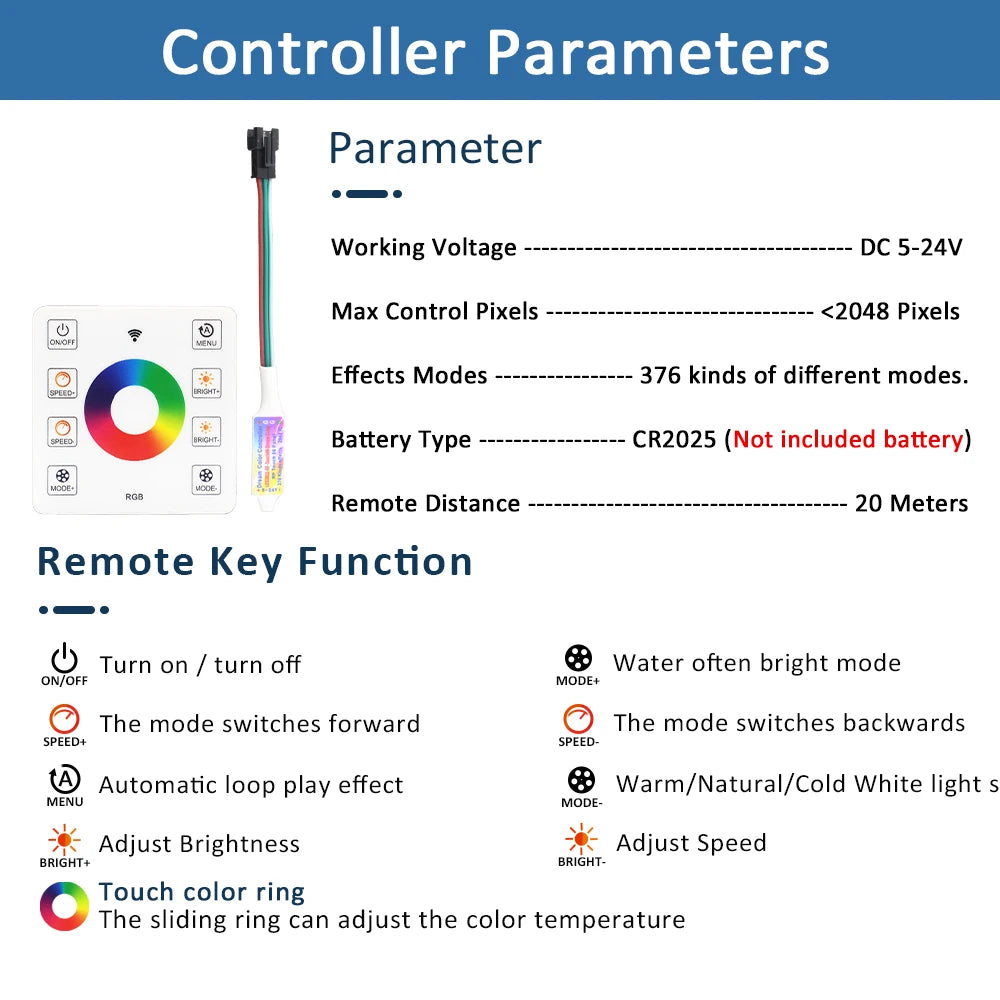

*** RGBIC RF Touch LED Controller
Working Voltage: DC 5-24V
Max Control Pixels <2048 Pixels
Effects Modes: 376 kinds of different modes.Most of effects are running water when you turn ON. Also with Pause and Auto-play function.
Battery Type: CR2025 ( The remote is not with battery)

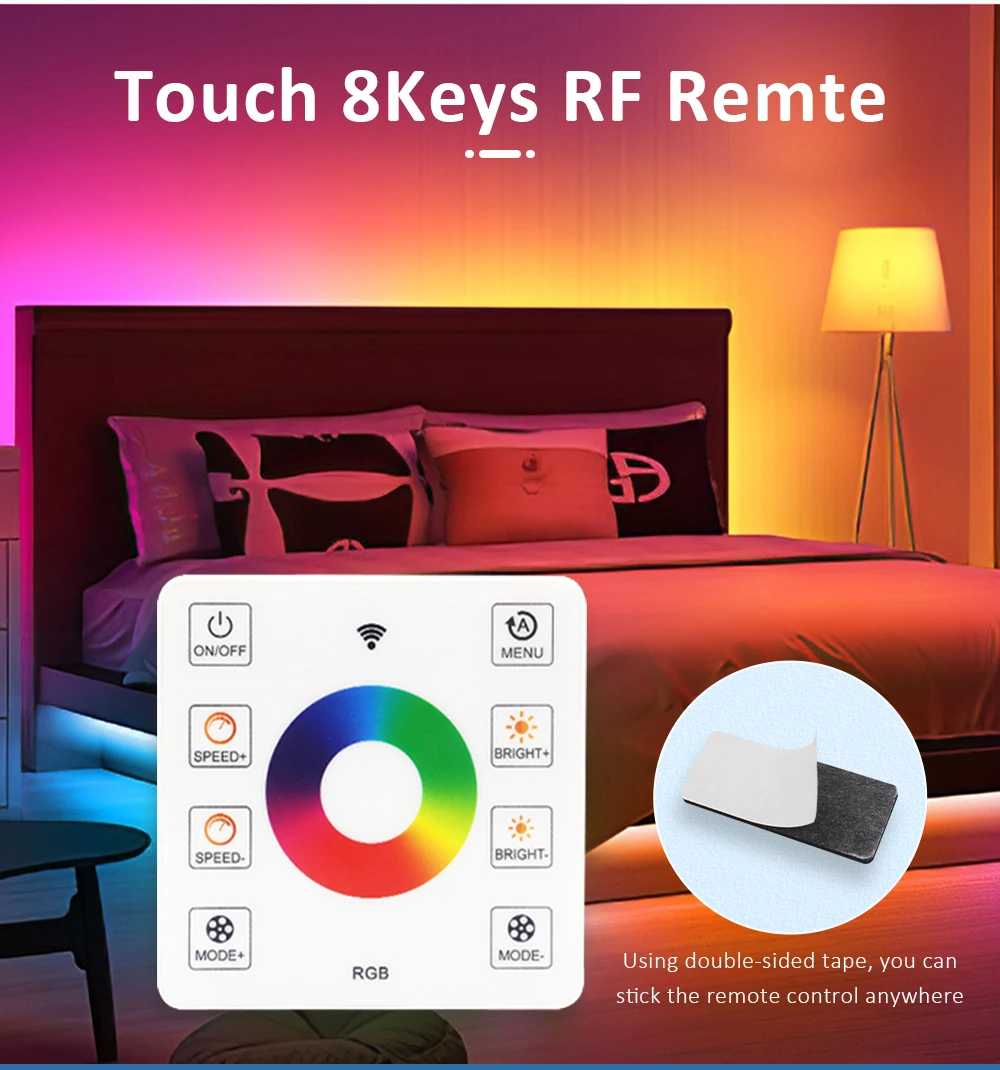

8 Keys Function: ON/OFF , Speed UP/Down, Mode+/Mode-, MENU, Brightness UP/Down, Touch color ring in the middle to adjust the static color.
Remote Distance: 20 Meters

How to adjust the pixel number ?
Step 1: Power Off the lights.
Step 2: Long press " MENU" 5 seconds enter into pixel setting menu
Step 3: Press "Mode+" to increase the pixels number,till the whole led strip are light ON. Press "Mode-" to decrease the pixel number.
Step 4: Press "ON/OFF" key to Save !
Default Factory pixel number is 305pcs, max increase to 2048pixels. If the led strip is more than 2048pcs pixels, just add another amplifier .

How to adjust the wire-Order of RGB led strip ?
Each factory maybe have a different wire-order for RGB led strip, normally it is +RBG,+GRB,+GBR,+RGB,etc. If you press Red, the Led strip light Green or Blue color, that means you have to adjust the wire-order of led strip light.
Let us do as the following steps:
Step 1: Power OFF the lights
Step 2: Long press " MENU" 5 seconds enter into the setting menu.
Step 3: Press " Bright +" to adjust the order,till the led strip are Sequentially light RED, Green, Blue order. Press " Bright-" to reset the order (Convenient batch adjustment).
Step 4: Press " ON/OFF" key to Save.

How to pair the remote to the controller, make it work independently ,never disturbed each other?
Learning:
Step 1: Cut OFF the power supply.
Step 2: Long Press "MODE+",meanwhile Powering -ON, the led strip will quick flash 3 times. learing sucessfully. Now only the just learning remote can control this controller, others cannot.

Delete:
Step 1: Cut OFF the power supply.
Step 2: Long press " Speed+", meanwhile Powering ON. the led strip will slow flash 3 times, delete sucessfully. Now all remote controls are universal.

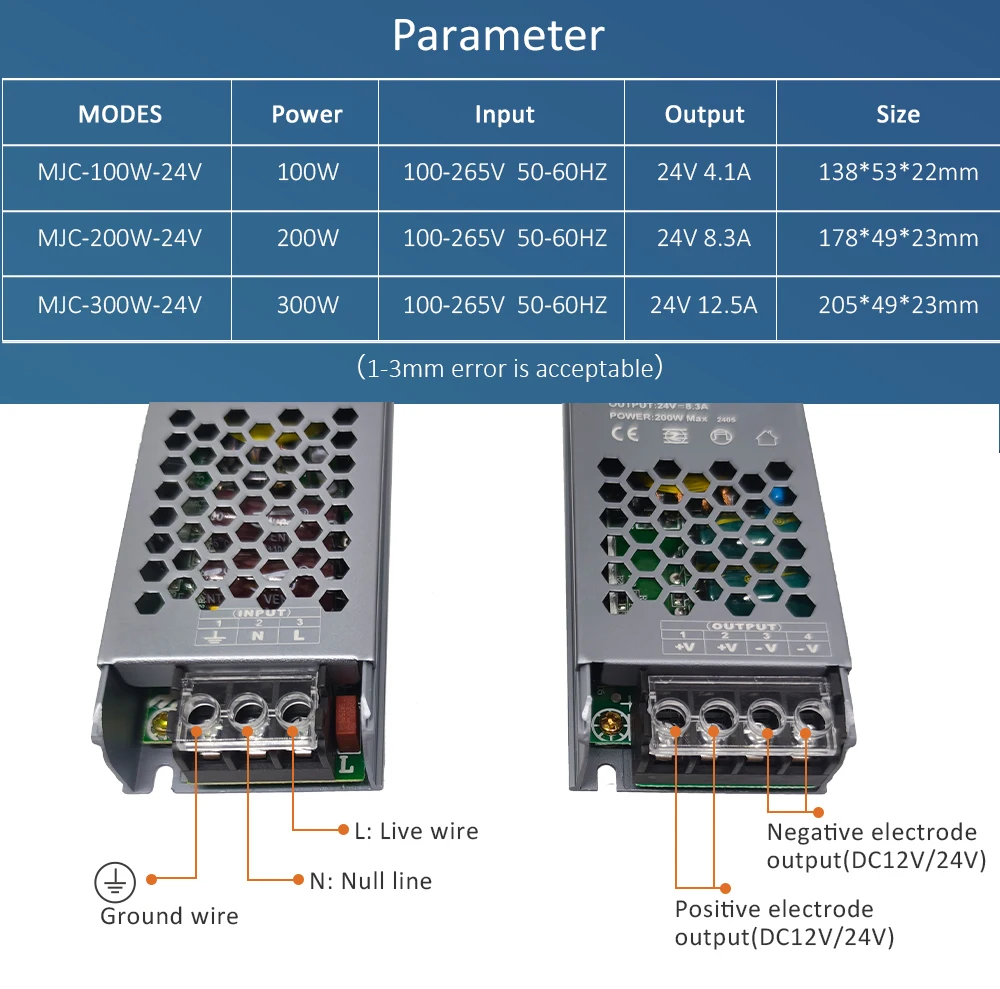

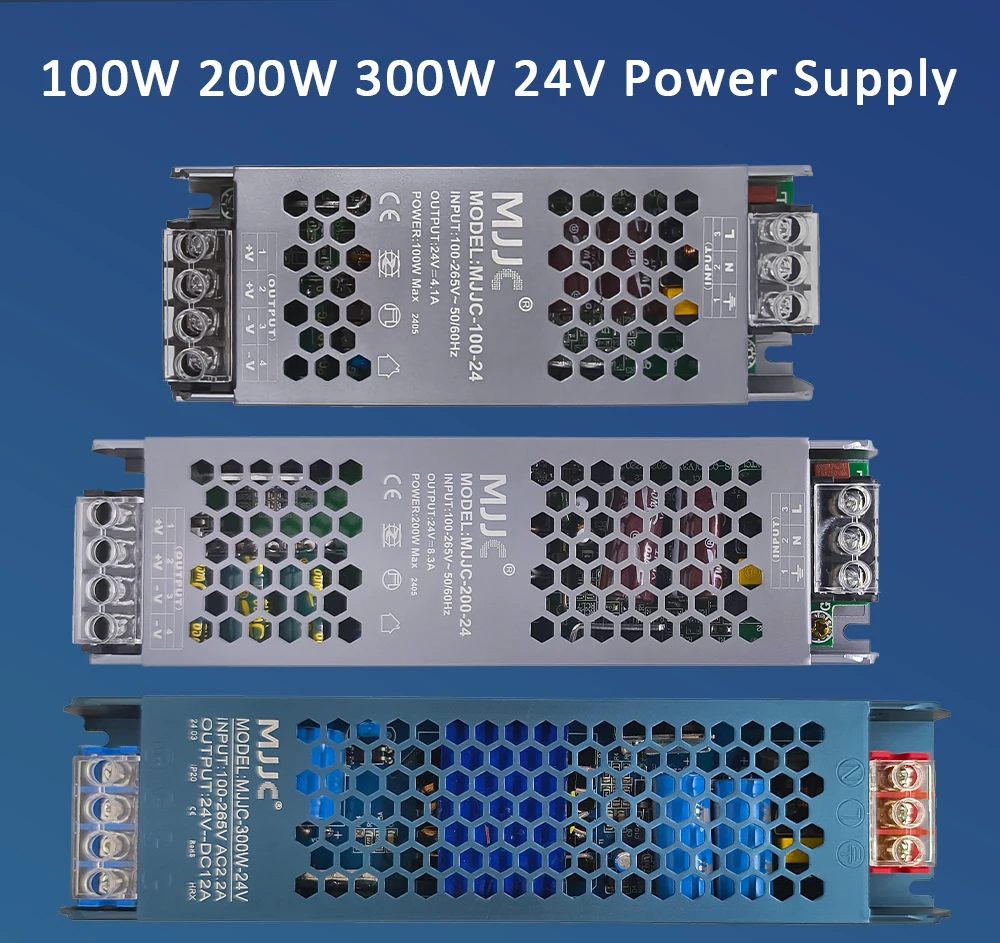

*** Power Supply

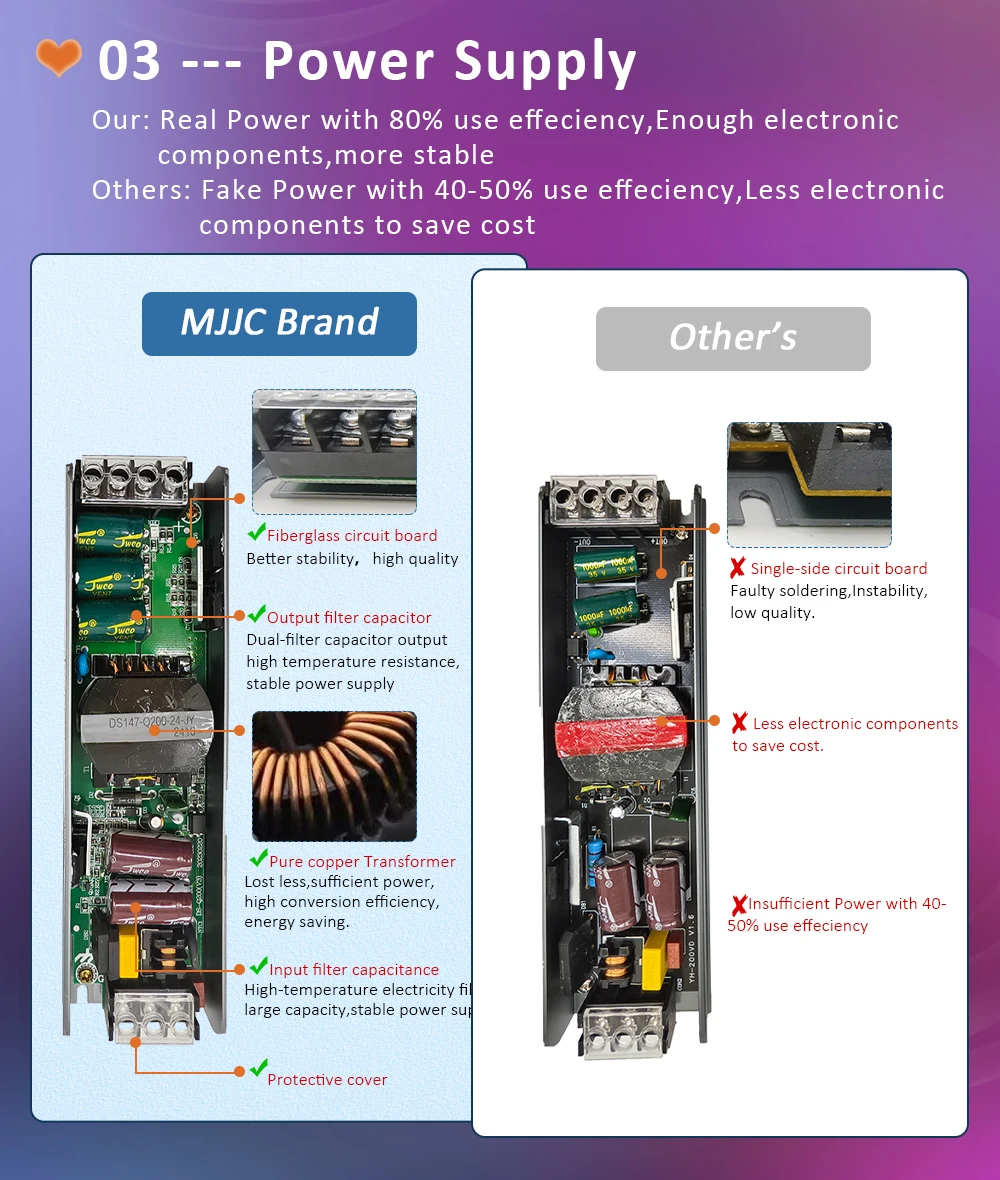

We used MJJC power supply,with high quality power supply, 100% enough power outputs,stable and long-life span.
The Power : 100W / 200W / 300W
Input Voltage: 100-265V AC, widely voltage used.
Output Voltage: DC 24V

How to choose the power supply ? we suggest.
1pc 100W power supply can used for 5M (Max.60W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 200W power supply can used for 10M-15M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 300W power supply can used for 15M-20M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.

Very Important !!!

IF your projects is more than 20m, we suggest you can add some extra power supply in another end of led strip, to avoide the voltage-drop, so that to keep the same birhgntess of the whole led strip.

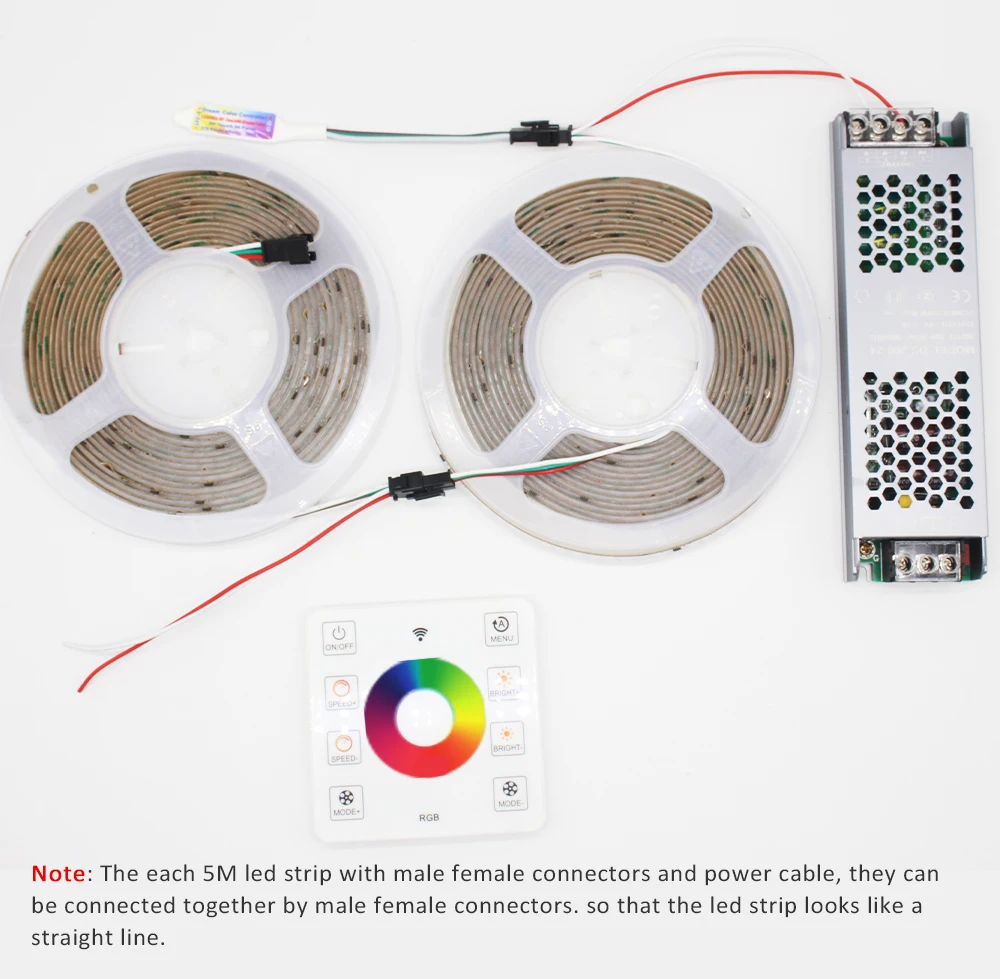

1.  The each 5M led strip with male female connectors and power cable, they can be connected together by male female connectors. so that the led strip looks like a straight line.

2.  If you find the color or brightness are different from the beginning to the end when it is static mode, You have to add one extra power supply. Or connect all power cable from led strip to the power supply to solve it. this is not the quality problem. It is voltage-drop problem because of ultra-long led strip lights.
